![Blue Sea 1218 12V DC Main 19 Positions / 120V AC Main 6 Positions [1218]](https://www.lightloaf.shop/image/blue-sea-1218-12v-dc-main-19-positions-120v-ac-main-6-positions-1218_Pe3USw_1.webp)

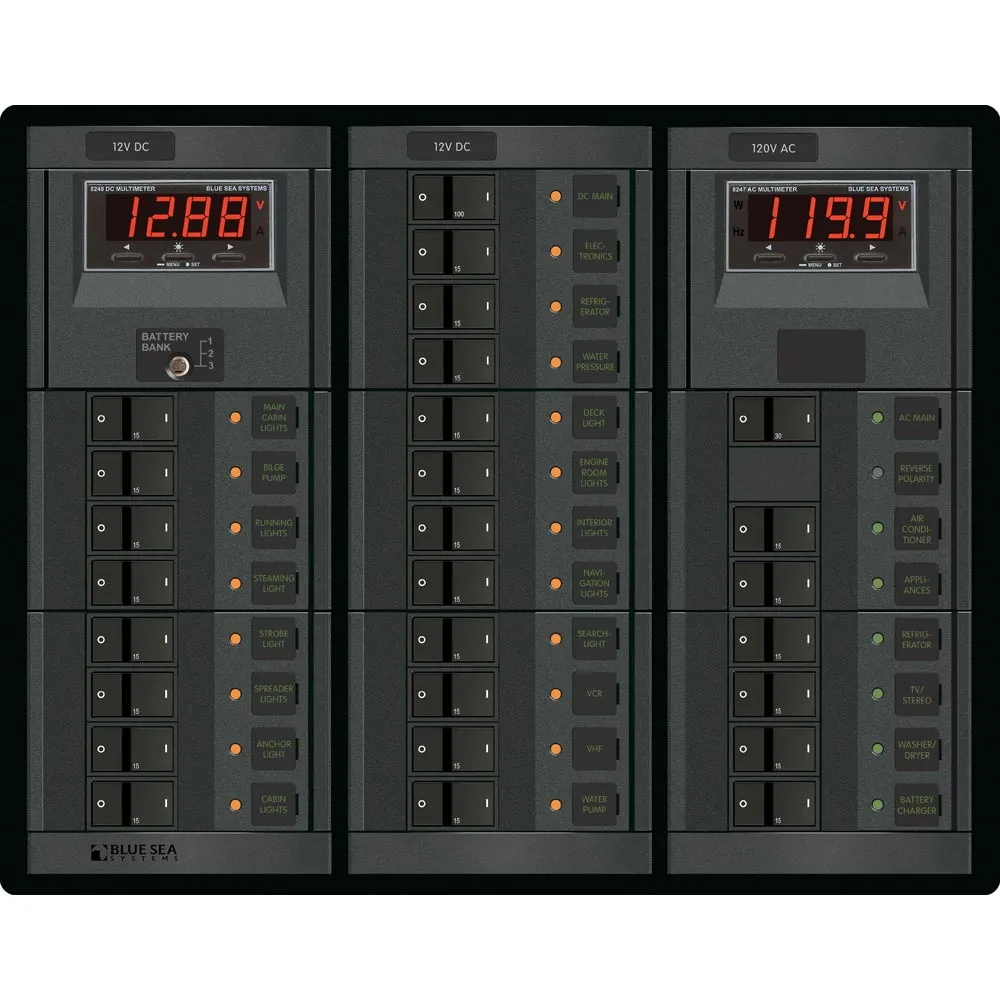

12 Volt DC Main 19 Positions/120 Volt AC Main 6 Positions
Features:
- 360 AC Panels may be equipped with main breakers up to 100A per pole to suit the application
- AC and DC panel amperage determined by AC Main and DC Main circuit breakers
- Modular manufacturing design reduces manufacturing time
- Interchangeable modular design eliminates custom engineering and metal fabrication
- Flexible modifications
- Flexible panel orientation (panels without meters)
Specifications:
- Positions:t6-AC / 19-DC
- Nominal Voltage:t120V AC / 12V DC
- Height:t10.75" (273.05mm)
- Width:t13.63" (346.2mm)
- Depth:t4.00" (101.6mm)
- Weight:t12.80lb (5.81kg)
Includes:
(1) - 4205 - Basic DC Label Kit - 30 Black Square Labels [LABEL]
(1) - 4206 - Basic AC Label Kit - 30 Black Square Labels [LABEL]
(6) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A (AC Branch)
(1) - 7414 - A-Series Flat Rocker Circuit Breaker - Double Pole 30A (AC Main)
(1) - 8247 - AC Digital Multi-Function Meter with Alarm (AC Meter)
(19) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A (DC Branch)
(1) - 7549 - C-Series Flat Rocker Circuit Breaker - Single Pole 100A (DC Main)
(1) - 8248 - DC Digital Multi-Function Meter with Alarm (DC Meter)
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .
Specifications:
- AC/DC: Both
- Box Dimensions: 9"H x 12"W x 18"L WT: 11.4 lbs
- UPC: 632085012182
