- Fits wide range of beam sizes for maximum versatility
- Steel plate side frames
- Steel spur gearing for optimum strength and smooth operation
- Universal tread hardened trackwheels that operate on standard S-beams or flat flanged beams
- Lubricated double-row ball bearings for high efficiency and low maintenance
- Metric rated
- For use with lug suspended Lodestar electric chain hoists
- Gear train lubricated with non-oxidizing grease
- Precision machined and hardened lift-wheel with hardened chain guides for precise chain lift-wheel fit
- Gearing designed for exceptionally long life and quiet operation
- Pack of 1 EA
- Manufacturer part number: 9316
- UPC Code: 43927693160
- Beam Height [Max] = 15 in
- Beam Height [Min] = 6 in
- Control Type = On/Off
- Corner Radius [Min] = 30 in
- Frequency [Nom] = 60 Hz
- Horizontal Speed [Nom] = 30 ft/min
- Load Cap. [Max] = 2 tons
- Load Cap. [Min] = 1/8 tons
- Phase = Three
- Power Cap. [Max] = 60 W
- Power Cap. [Nom] = 1/4 hp
- Power Source = Electric

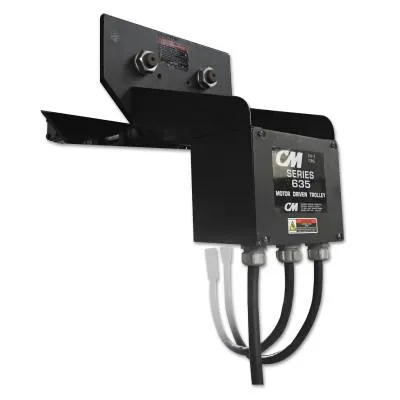

- Type = Powered Trolley
- Voltage [Nom] = 230 VAC
- Wheel Diam [Nom] = 4 in
- Wheel Flange Width [Max] = 5 5/8 in
- Wheel Flange Width [Min] = 3 3/8 in
- Wt. = 112 lb
- This is a normal stocking item.
