ControlX Z-MOTION Digital X-ray System

40 kW, 125 kV, 500 mA, .1 - 500 mAs ultra-high frequency generator.
1024 APR techniques.

Power requirements: 1 x 208/230 VAC, 3 x 208/230 VAC
or 3 x 400/480 VAC. Low speed.

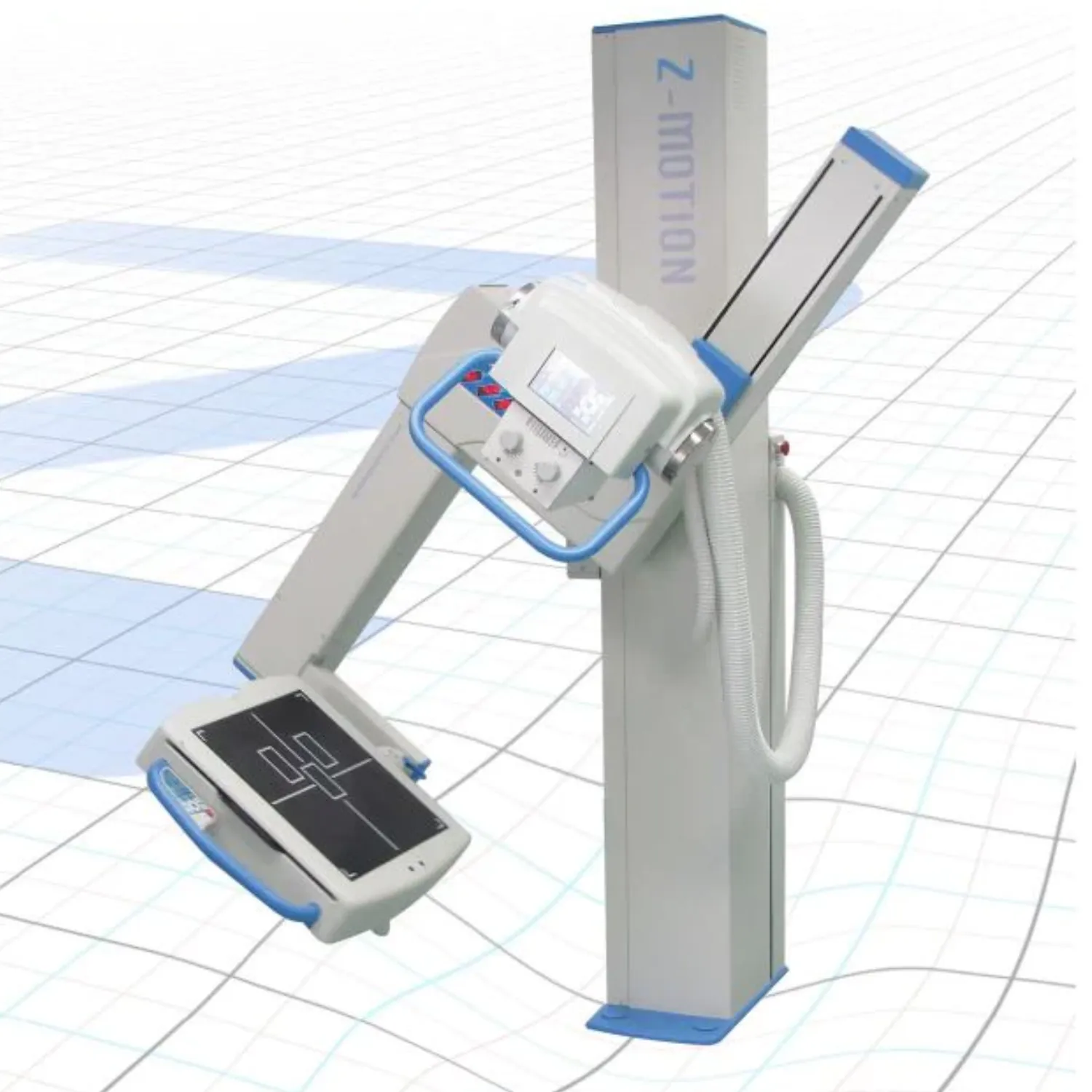

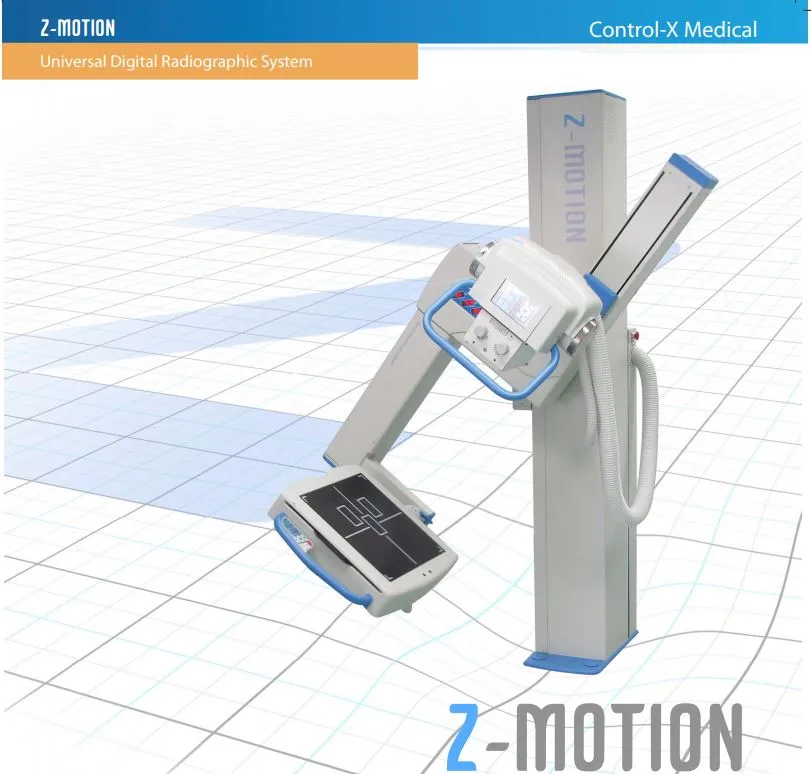

Z-Motion

The Z-Motion  Universal Stand provides a new approach for practitioners
to employ digital flat panel technology. Fully motorized and manual movements, counterbalanced for quick and quiet position changes.

• Minimum ceiling height required: 7'10".
• Vertical arm travel: 47.25", SID range: 39. - 79",
• Imager rotation: /- 45 degrees.
• Z-Arm rotation: -30 to 120 degrees.
• Rotation of x-ray tube: /- 90 degree. Voltage 100-240 VAC /- 10% 50-60 Hz

E7242X-CX

• 0.6-1.5 focal spot X-ray tube with 90 deg.
• Horn angle and 40' stator cord.
• 200 kHu 1-year pro-rated warranty. (Manufacturing defects only)

Collimare CML150-001C

• Certified manual LED lighted cross hair laser guided collimator. 150 kVp,150 kW, 24 V AC/DC.

500-35

• 35' H.V. cable pair with Federal terminals on both ends.

APEX Grid Frame

• Grid Frame with handle for use with Z-motion grids

10310L17

• 103 Line 10:1 ratio grid for 17" Buckys or Grid Cabinets. Focus range (34-44") and (40-72")

Portable radiographic table with 4-way float top

Five Year warranty on X-ray Pro Rated on Tube

MasterX Flat Panel DR System 17 x 17 CSI Tethered

17x17 inch CsI Tethered, cassette size DR Flat Panel Detector, with advanced acquisition VOYANCE software and PACS System Specifications

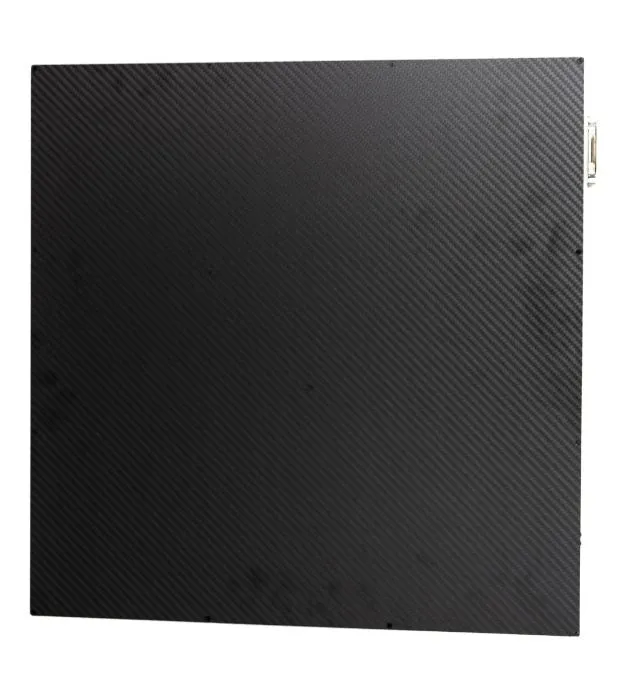

MasterX 17x17 inch CsI Tethered, cassette size DR Flat Panel Detector

• Active area (Real Image Size): 17x17 inch Overall Dimensions: 95.5×495.5×15.8mm (19.5x19.5x0.62 inch)
• Weight: 4.3 Kg (9.5 lb)
• Power Consumption: max of 21 Watt
• Carbon Fiber Sensor Protection Plate
• Cesium Iodide (Csl) with Amorphous Silicon (a-Si) Photodiode Pixel Matrix: 3040(H)×3036(V) Pixel Pitch: 140 μ m
• A/D Conversion: 16 bit
• X-ray Voltage Range: 40-150 kVp
• Tethered Wired Interface: Gigabit Ethernet (1000BASE-T)
• Control Box with AC100-240V, 50/60Hz input power, and DC24V
• 2.5A 60W(MAX) output power

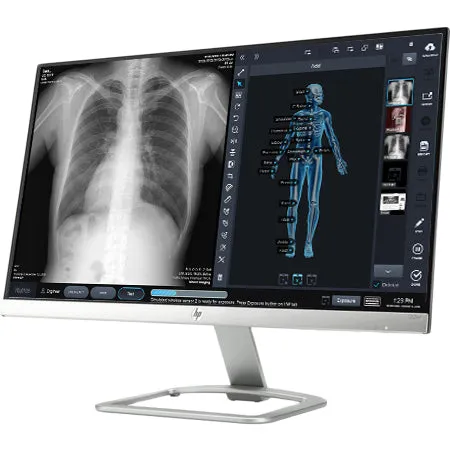

Voyance Acquisition Software and Mini Pacs

• 10 Viewer license

Dell Precision 3430 Small Form Factor (Min. Configuration):

• Intel Core i5-8500, 6 Core, 9MB Cache, 3.0GHz, 4.1Ghz Turbo w/
• HD Graphics 630
• Windows 10 Professional
• 1 TB Hard Disk
• 8 GB RAM
• 24 inch Monitor

Workstation pre-configured and with the Software installed

On-site installation

Application Training
